Pressure Sensor Film | High Sensitivity - Protective Sensing Unit | Thin Flexible Sensor for Robots/Gloves/Human Interaction | Model ZNS - 01

Brand:

96.59

Thin High Sensitivity Design - Pressure sensor film features 0.3mm thickness and detects minute pressure as low as 400g, mimicking human skin sensitivity for detailed tactile feedback in robotics and bionic applications. Customizable -Protective & Pressure-Sensitive Dual Function - Sensing unit supports tailored development for diverse functional needs, offering both -protective coverage and detailed pressure detection across industrial, health, and interactive tech environments. Long-Life Flexible Durability - Sensor maintains high sensitivity through over 1 million uses with excellent bending tolerance, ensuring consistent performance in dynamic applications like responsive gloves and robotic movement. Easy Installation & Wide Compatibility - With simple setup and electromagnetic non-interfering activity, this pressure sensor works seamlessly in temperatures from -20℃ to 60℃, ideal for DIY electronics and specialized equipment integration. Secure & Consistent Performance - Pressure sensor operates at DC3.3V with no electrostatic discharge sensitivity, providing uniform readings and user protection in human-robot interaction and detailed measurement tasks.

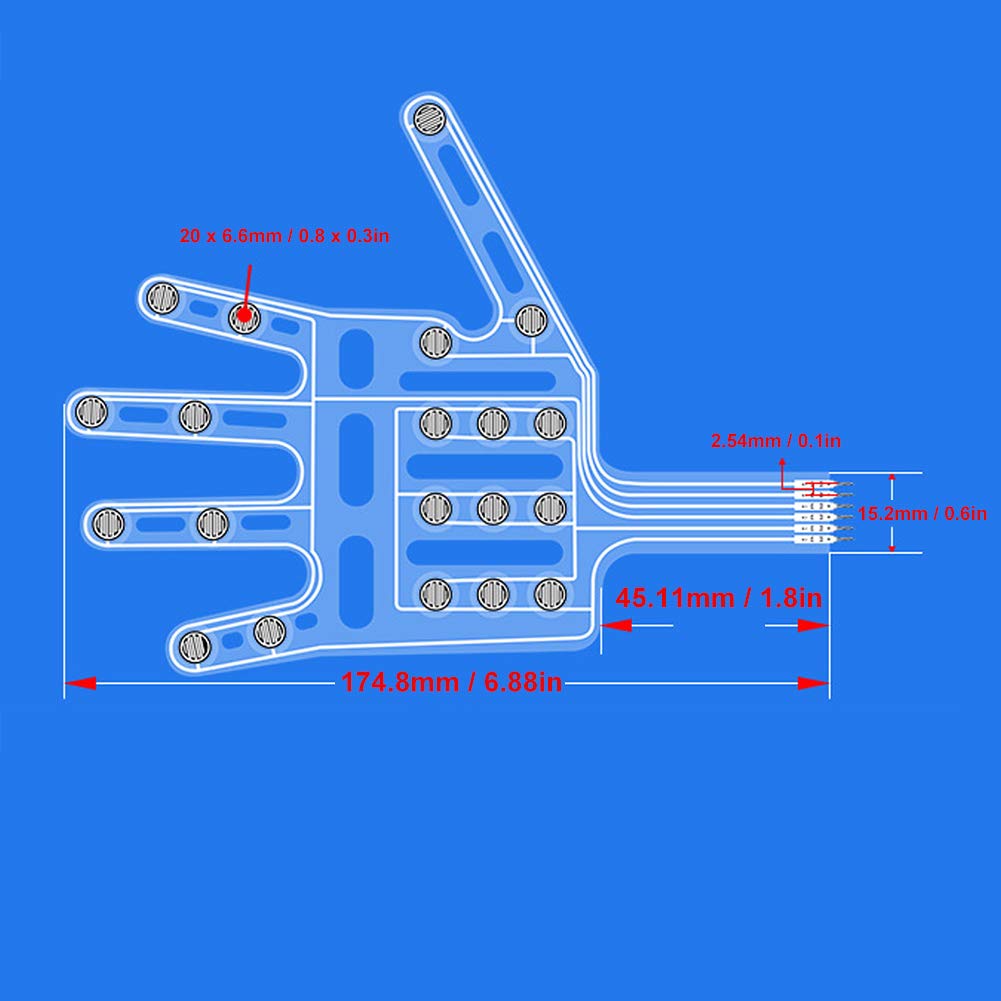

Tired of bulky sensors failing under slight pressure or dampness? Imagine achieving human-like touch sensitivity in robots and responsive devices without constant replacements. Our Pressure Sensor Film solves this with thin 0.3mm -protective design, detecting minute 400g pressures while lasting over 1 million uses. It delivers detailed tactile feedback for robotics, interactive gloves, and bionic skin, featuring easy installation, EMI-non-interfering activity, and customizable functions. Experience consistent, high-sensitivity performance that transforms your projects into innovative developments. Item Type: Pressure sensor Model: ZNS-01 Thickness: Range: Single point 5kg Response Point: 400g Durability: >1 million times Initial Impedance: >10MQ (no load) Test Voltage: Typical value DC3.3V Response Time: Recovery Time: Working Temperature: -20℃~60℃ Electromagnetic Interference: Not generated Electrostatic Discharge: Not sensitive Size: M number Approx. 20 x 6.6mm / 0.8 x 0.3in Approx. 174.8mm / 6.88in Approx. 45.11mm / 1.8in Approx. 2.54mm / 0.1in Approx. 15.2mm / 0.6in Package List: 1 x Pressure Sensor
